title: "Data Science, </br>Séance 6 : Données spatiales"
author: "Etienne Côme"
date: "21 novembre 2018"
output:
  beamer_presentation:
    toc: false
    incremental: false
  revealjs::revealjs_presentation:
    theme: white
    transition: none
    self_contained: true
    css: slides.css
---

```{r setup, include=FALSE}
knitr::opts_chunk$set(echo = FALSE)
```




## Packages historique



* `rgdal`: interface entre R and [GDAL](http://www.gdal.org/) (Geospatial Data Abstraction Library) and [PROJ4](https://github.com/OSGeo/proj.4) librarie: raster / vector

* `sp`: classes d'objets spatiaux pour R. (S4)

* `rgeos`: interface entre R et [GEOS](http://trac.osgeo.org/geos/) (Geometry Engine - Open Source) library: area, perimeter, distances, dissolve, buffer, overlap, union, contains...


Toujours utilisé

## Simple Features for R

* `sf`  Website: [Simple Features for R](https://r-spatial.github.io/sf/index.html) Octobre 2016

* `sp`, `rgeos` and `rgdal` tout dans le même package

* Plus simple

* [Tidy data](http://vita.had.co.nz/papers/tidy-data.html): compatible `dplyr` et autre `tidyverse`



## Simple Features for R

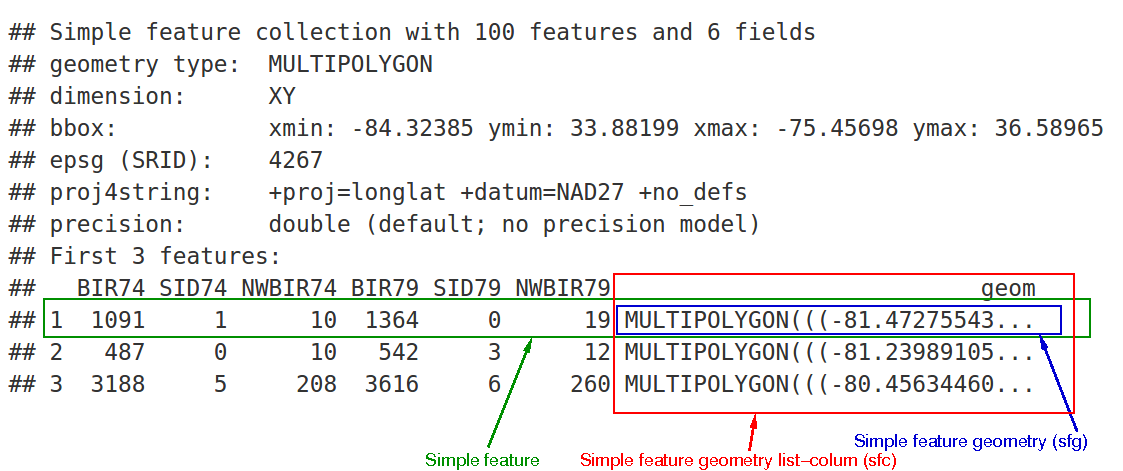

**sf objects data structure:**

<img src="images/sf.png" alt="format sf" width="800">



## Lire des données
```{r,echo=TRUE,warning=FALSE,message=FALSE,results='hide'}
library(sf)
mtq <- st_read("data/mtq/martinique.shp")
```
```{r,echo=TRUE}
class(mtq)
str(mtq)
```

## Changer la projection ou passer en lat/long
```{r,echo=TRUE,warning=FALSE,fig.height=4.5}
mtq_rp = st_transform(mtq,4326)
mtq_rp
```

## Système de coordonées
Les projections/système de coordonées sont répertoriées grâce à un code le code epsg :

- lat/long : 4326 https://epsg.io/4326
- Lambert 93 : 2154 https://epsg.io/2154
- Pseudo-Mercator : 3857 https://epsg.io/3857
- Lambert azimuthal equal area : 3035 https://epsg.io/3035

Préservations ? angles, aires, disstance locales, ...


## Affichage

```{r,echo=TRUE,warning=FALSE,fig.height=4.5}
plot(mtq)
```

## Affichage, seulement la géométrie
```{r, echo=TRUE,warning=FALSE,fig.height=4.5}
plot(st_geometry(mtq))
```


## Centroids
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
mtq_c <- st_centroid(mtq)
plot(st_geometry(mtq))
plot(st_geometry(mtq_c), add=TRUE, cex=1.2, col="red", pch=20)
```

## Distances
```{r, echo=TRUE,warning=FALSE,message=FALSE}
mat <- st_distance(x=mtq_c,y=mtq_c)
mat[1:5,1:5]
```

## Polygons Aggregation, union :
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
mtq_u <- st_union(mtq)
plot(st_geometry(mtq), col="lightblue")
plot(st_geometry(mtq_u), add=T, lwd=2, border = "red")
```

## Polygons Aggregation,
avec une variable de groupe :
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
library(dplyr)
mtq_u2 <- mtq %>%
  group_by(STATUT) %>%
  summarize(P13_POP=sum(P13_POP))
plot(st_geometry(mtq), col="lightblue")
plot(st_geometry(mtq_u2), add=T, lwd=2, border = "red", col=NA)
```

## Buffer
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
mtq_b <- st_buffer(x = mtq_u, dist = 5000)
plot(st_geometry(mtq), col="lightblue")
plot(st_geometry(mtq_u), add=T, lwd=2)
plot(st_geometry(mtq_b), add=T, lwd=2, border = "red")

```


## Polygon Intersection
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
m <- rbind(c(700015,1624212), c(700015,1641586), c(719127,1641586),
           c(719127,1624212), c(700015,1624212))
p <- st_sf(st_sfc(st_polygon(list(m))), crs = st_crs(mtq))
plot(st_geometry(mtq))
plot(p, border="red", lwd=2, add=T)
```

## Polygon Intersection
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
mtq_z <- st_intersection(x = mtq, y = p)
plot(st_geometry(mtq))
plot(st_geometry(mtq_z), col="red", border="green", add=T)
```


## Voronoi Polygons
<small>google: "st_voronoi R sf" (https://github.com/r-spatial/sf/issues/474 & https://stackoverflow.com/questions/45719790/create-voronoi-polygon-with-simple-feature-in-r)
</small>
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
mtq_v <- st_voronoi(x = st_union(mtq_c))
mtq_v <- st_intersection(st_cast(mtq_v), st_union(mtq))
mtq_v <- st_join(x = st_sf(mtq_v), y = mtq_c, join=st_intersects)
mtq_v <- st_cast(mtq_v, "MULTIPOLYGON")
plot(st_geometry(mtq_v), col='lightblue')
```

## Ecrire des données

```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
system("rm data/voronoi.geojson")
write_sf(mtq_v,"./data/voronoi.geojson",driver="GeoJSON")
```

## Autre traitements

- st_area(x)
- st_length(x)
- st_disjoint(x, y, sparse = FALSE)
- st_touches(x, y, sparse = FALSE)
- st_crosses(s, s, sparse = FALSE)
- st_within(x, y, sparse = FALSE)
- st_contains(x, y, sparse = FALSE)
- st_overlaps(x, y, sparse = FALSE)
- st_equals(x, y, sparse = FALSE)
- st_covers(x, y, sparse = FALSE)
- st_covered_by(x, y, sparse = FALSE)
- st_covered_by(y, y, sparse = FALSE)
- st_equals_exact(x, y,0.001, sparse = FALSE)
- ...

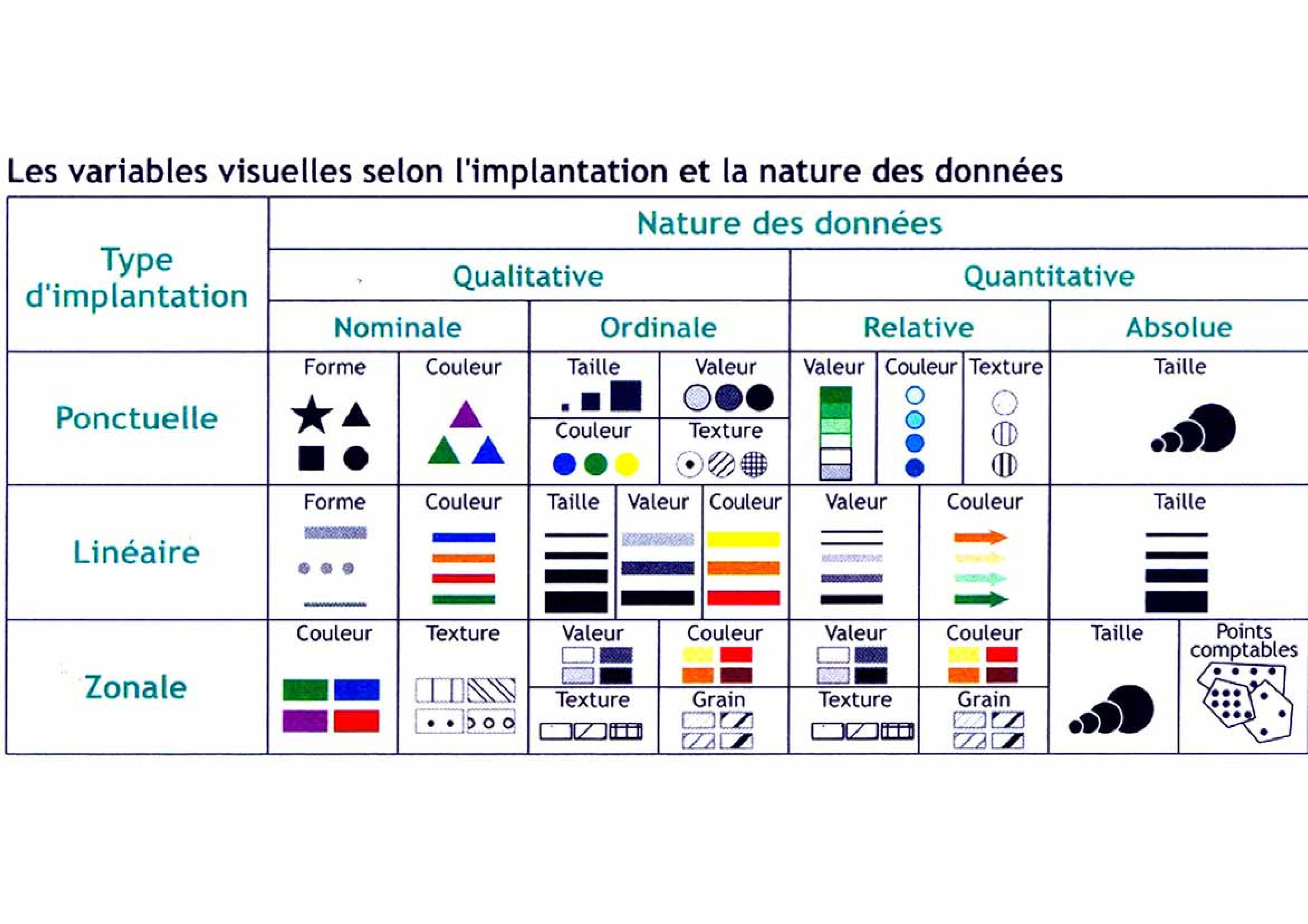

## Cartographie
<img src="./images/semio.jpg" height="700px">



## Carte plus complexes
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
library(sf)
# Import geo layers
# Communes of Seine Maritime
sm <- st_read(dsn = "data/seine_maritime.geojson",
              stringsAsFactors = F, quiet=TRUE)
# French departements
dep <- st_read(dsn = "data/dep.geojson",
               stringsAsFactors = F, quiet=TRUE)
# change projection (lambert93)
sm <- st_transform(sm, 2154)
dep <- st_transform(dep, 2154)
# Import dataset
csp <- read.csv("data/data_seine_maritime.csv")
# merge geolayer and dataset
sm <- merge(sm, csp, by="INSEE_COM", all.x=TRUE)
```


## Carte simple symboles proportionels
```{r, echo=TRUE,fig.show='hide'}
library(cartography)
plot(st_geometry(sm))
propSymbolsLayer(sm, var = "act")
title("Active Population")
```

## Carte simple symboles proportionels
```{r, echo=FALSE,warning=FALSE,message=FALSE,fig.show='last',fig.height=5.5}
library(cartography)
plot(st_geometry(sm))
propSymbolsLayer(sm, var = "act")
title("Active Population")
```


## Carte symboles proportionels
```{r, echo=TRUE,fig.show='hide'}
# Custom map of active population
par(mar=c(0.2,0.2,1.4,0.2))
bb <- st_bbox(sm)
# the bbox is used to center the map on the Seine Maritime depatement
plot(st_geometry(dep), col = "ivory", border="ivory3",  bg="azure",
     xlim = bb[c(1,3)], ylim =  bb[c(2,4)])
plot(st_geometry(sm), col="cornsilk2", border = NA, lwd = 0.5, add=T)
propSymbolsLayer(sm, var = "act", col="darkblue", inches = 0.6,
                 border = "white", lwd=0.7, symbols = "square",
                 legend.style = "e", legend.pos="topleft",
                 legend.title.txt = "Labor Force\n(2014)",
                 legend.values.rnd = 0)
# Scale Bar
barscale(size = 10)
# North Arrow
north(pos = "topright", col = "darkblue")
# Full layout
layoutLayer(title = "Workforce in Seine-Maritime",
            sources = "Insee, 2018", author = "Kim & Tim, 2018",
            col = "darkblue", coltitle = "white", tabtitle = TRUE,
            frame = TRUE, scale = NULL, north = FALSE)

title("Active Population")
```

## Carte symboles proportionels
```{r, echo=FALSE,warning=FALSE,message=FALSE,fig.show='last',fig.height=5.5}
# Custom map of active population
par(mar=c(0.2,0.2,1.4,0.2))
bb <- st_bbox(sm)
# the bbox is used to center the map on the Seine Maritime depatement
plot(st_geometry(dep), col = "ivory", border="ivory3",  bg="azure",
     xlim = bb[c(1,3)], ylim =  bb[c(2,4)])
plot(st_geometry(sm), col="cornsilk2", border = NA, lwd = 0.5, add=T)
propSymbolsLayer(sm, var = "act", col="darkblue", inches = 0.6,
                 border = "white", lwd=0.7, symbols = "square",
                 legend.style = "e", legend.pos="topleft",
                 legend.title.txt = "Labor Force\n(2014)",
                 legend.values.rnd = 0)
# Scale Bar
barscale(size = 10)
# North Arrow
north(pos = "topright", col = "darkblue")
# Full layout
layoutLayer(title = "Workforce in Seine-Maritime",
            sources = "Insee, 2018", author = "Kim & Tim, 2018",
            col = "darkblue", coltitle = "white", tabtitle = TRUE,
            frame = TRUE, scale = NULL, north = FALSE)

title("Active Population")
```


## Carte qualitative
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='hide',fig.height=4.5}
#To display qualitative data modalities
mod <- c("agr", "art", "cad", "int", "emp", "ouv")
# labels in the legedn
modlab <- c("Agriculteurs", "Artisans","Cadres",
            "Prof. Inter.", "Employés", "Ouvriers")
# colors
cols <- c("#e3b4a2", "#a2d5d6", "#debbd4",
          "#b5dab6", "#afc2e3", "#e9e2c1")
par(mar=c(0.2,0.2,1.4,0.2))
plot(st_geometry(dep), col = "ivory", border="ivory3", bg="azure",
     xlim = bb[c(1,3)], ylim =  bb[c(2,4)])
typoLayer(sm, var = "cat",
          border = "ivory", lwd = 0.5,
          legend.values.order = mod,
          col = cols,
          add=TRUE, legend.pos = "n")
# functions are dedicated to legend display
legendTypo(title.txt = "Dominant Socio-Professional\nCategory",
           col = cols,
           categ = modlab,
           nodata = F)
barscale(size = 10)
north(pos = "topright", col = "darkblue")
layoutLayer(title = "Workforce Distribution in Seine-Maritime",
            sources = "Insee, 2018", author = "Kim & Tim, 2018",
            col = "darkblue", coltitle = "white", tabtitle = TRUE,
            frame = TRUE, scale = NULL, north = FALSE)
```


## Carte qualitative
```{r, echo=FALSE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}


#To display qualitative data
# modalities
mod <- c("agr", "art", "cad", "int", "emp", "ouv")
# labels in the legedn
modlab <- c("Agriculteurs", "Artisans","Cadres", "Prof. Inter.", "Employés", "Ouvriers")
# colors
cols <- c("#e3b4a2", "#a2d5d6", "#debbd4", "#b5dab6", "#afc2e3", "#e9e2c1")

par(mar=c(0.2,0.2,1.4,0.2))
plot(st_geometry(dep), col = "ivory", border="ivory3", bg="azure",
     xlim = bb[c(1,3)], ylim =  bb[c(2,4)])
typoLayer(sm, var = "cat",
          border = "ivory", lwd = 0.5,
          legend.values.order = mod,
          col = cols,
          add=TRUE, legend.pos = "n")
# functions are dedicated to legend display
legendTypo(title.txt = "Dominant Socio-Professional\nCategory",
           col = cols,
           categ = modlab,
           nodata = F)
barscale(size = 10)
north(pos = "topright", col = "darkblue")
layoutLayer(title = "Workforce Distribution in Seine-Maritime",
            sources = "Insee, 2018", author = "Kim & Tim, 2018",
            col = "darkblue", coltitle = "white", tabtitle = TRUE,
            frame = TRUE, scale = NULL, north = FALSE)



```



## Choroplete
```{r, echo=TRUE,warning=FALSE,message=FALSE,fig.show='hide'}
# Compute the share of "managers" in the active population
sm$pcad <- 100 * sm$cad / sm$act

# The getBreaks() function is used to classify the variable
bks <- getBreaks(v = sm$pcad, method = "quantile", nclass = 6)

# The carto.pal() function give access to various palettes
cols <- carto.pal("green.pal", 3,"wine.pal",3)

# Create the map
par(mar=c(0.2,0.2,1.4,0.2))
plot(st_geometry(dep), col = "ivory", border="ivory3", bg="azure",
     xlim = bb[c(1,3)], ylim =  bb[c(2,4)])
choroLayer(sm, var = "pcad", breaks = bks,
           col = cols, border = "grey80",
           legend.values.rnd = 1,
           lwd = 0.4, legend.pos = "topleft",
           legend.title.txt = "Share of managers (%)", add=T)
# Add a layout
layoutLayer(title = "Managers",
            sources = "Insee, 2018", author = "Kim & Tim, 2018",
            theme = "green.pal",
            col = "darkred", coltitle = "white",
            tabtitle = TRUE,
            frame = TRUE, scale = 10)
north(pos = "topright")
```

## Choroplethe
```{r, echo=FALSE,warning=FALSE,message=FALSE,fig.show='last',fig.height=4.5}
# Compute the share of "managers" in the active population
sm$pcad <- 100 * sm$cad / sm$act

# The getBreaks() function is used to classify the variable
bks <- getBreaks(v = sm$pcad, method = "quantile", nclass = 6)

# The carto.pal() function give access to various cartographic color palettes
cols <- carto.pal("green.pal", 3,"wine.pal",3)

# Create the map
par(mar=c(0.2,0.2,1.4,0.2))
plot(st_geometry(dep), col = "ivory", border="ivory3", bg="azure",
     xlim = bb[c(1,3)], ylim =  bb[c(2,4)])
choroLayer(sm, var = "pcad", breaks = bks,
           col = cols, border = "grey80",
           legend.values.rnd = 1,
           lwd = 0.4, legend.pos = "topleft",
           legend.title.txt = "Share of managers (%)", add=T)
# Add a layout
layoutLayer(title = "Managers",
            sources = "Insee, 2018", author = "Kim & Tim, 2018",
            theme = "green.pal",
            col = "darkred", coltitle = "white",
            tabtitle = TRUE,
            frame = TRUE, scale = 10)
north(pos = "topright")
```

## Carte interactives avec Leaflet
```{r, echo=TRUE,eval=FALSE,warning=FALSE,message=FALSE,fig.show='none',fig.height=5,}
library(leaflet)
sm.center.4326 = sm %>% st_centroid()%>% st_transform(4326)
leaflet(data = sm.center.4326 ) %>%
  addTiles() %>%
  addCircleMarkers(radius =~ sqrt(act/100)*1.5,
                   fillColor = "#449944",
                   stroke=FALSE,
                   fillOpacity = 1,
                   popup = ~paste(LIBELLE,":",act,"actifs"))
```

<a href="https://rstudio.github.io/leaflet/">https://rstudio.github.io/leaflet/</a>

- addMarkers
- addCircleMarkers
- addPolygons
- .....

## Carte interactives avec Leaflet
```{r, echo=FALSE,warning=FALSE,message=FALSE,fig.show='last',fig.height=5}
library(leaflet)
sm.center.4326 = sm %>% st_centroid()%>% st_transform(4326)
leaflet(data = sm.center.4326 ) %>%
  addTiles() %>%
  addCircleMarkers(radius =~ sqrt(act/100)*1.5,
                   fillColor = "#449944",
                   stroke=FALSE,
                   fillOpacity = 1,
                   popup = ~paste(LIBELLE,":",act,"actifs"))
```

## Exercice
<p>Charger les contours des départements français contenus dans le répertoire exo6_dep</p>
<p>Calculer à partir des données communales contenues dans le fichier exo6_data.csv des taux de naissances par départements.</p>
<p>Joindre les deux tables et vérifier ques des données sont associés à chaque départements.</p>
<p>Exporter les données en geojson</p>
<p>Réaliser une carte choroplèthe avec ces données.</p>


## Exercice
<p>Calculer et afficher les voronois associés aux stations velib de new-york.</p>
<p> Les données sont disponnibles dans le fichiers json ./data/inputNewYork.json</p>
<p>Créer une data.frame avec les latitudes, longitudes et nbr de vélos des stations</p>
<p>Utiliser la fonction st_as_sf avec l'option coords pour transformer celle-ci en data.frame spatiale.</p>

## Exercice
<p>Faire une carte interactive des monuments historiques à paris</p>
<p>Faire une carte en symbol proportionel avec le nombre de monuments par iris.</p>
<p>regarder la fonction st_overlaps</p>
<p>! vous travaillerez avec des données en lambert 93</p>
<p>Calculer la densité de monuments par hectare pour chaque iris.</p>
<p>Faire une carte choroplète</p>
<p>Les contours des iris sont disponnibles dans le répertoire "data/CONTOURS-IRIS/"
<p>Les données sont disponibles dans le répertoire "data/monuments_paris.geojson"</p>


## Exercice
<p>Faire une carte en symboles proportionels du nombre de vélos dans les stations vélib à NewYork.</p>
<p>Utiliser un fond de carte open street map avec la library cartography.</p>

## Informations et exercices supplémentaires
(dépot staRday)[http://github.comeetie.fr/satRday]
